How BMW is speeding up vehicle prototype engineering using augmented reality

BMW says that the use of augmented reality (AR) goggles allow real geometries on a vehicle body to be overlaid with true-to-scale holographic 3D models.
By : HT Auto Desk
| Updated on: 20 Sep 2020, 04:23 PM
Augmented reality being used for vehicle prototypes at BMW
Augmented reality being used for vehicle prototypes at BMW
Augmented reality being used for vehicle prototypes at BMW
Augmented reality being used for vehicle prototypes at BMW

BMW is speeding up the process of vehicle concept and prototype engineering by as much as twelve months, using a new augmented reality (AR) application. The application is being used on individual vehicle sections through to complex production stages at BMW's pilot plant located in the Research & Innovation Centre in Munich, Germany.

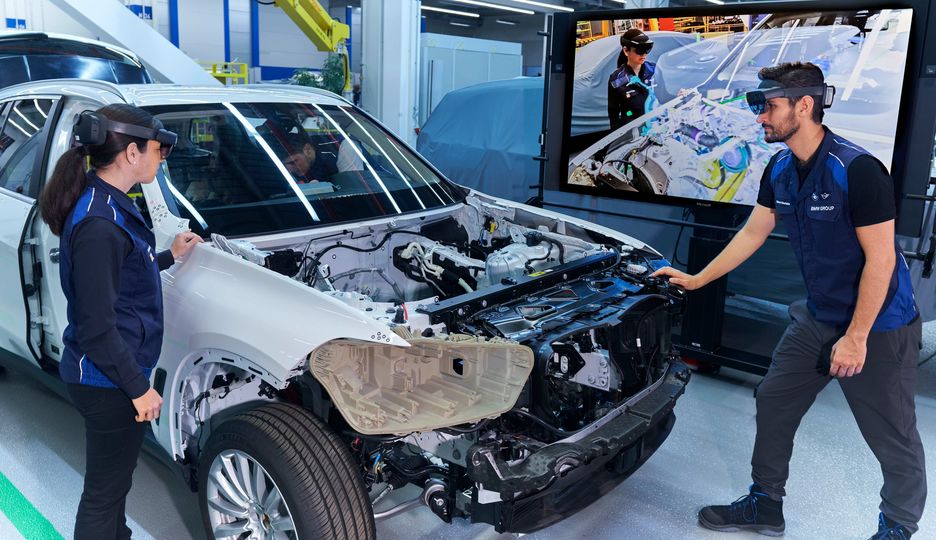

The use of AR goggles allow real geometries on a vehicle body to be overlaid with true-to-scale holographic 3D models. This helps in assessing a range of concept variants and assembly processes for future series vehicles flexibly and cost-efficiently without the need for too many test setups.
